PalLinear

TOP 3 BENEFITS:

The most efﬁcient, reliable and durable palletizers on the market
Palletizing of all kinds of parallelepiped packs
High-level infeed and a mobile pallet, for an optimal use of floor space

PRODUCT INFORMATION

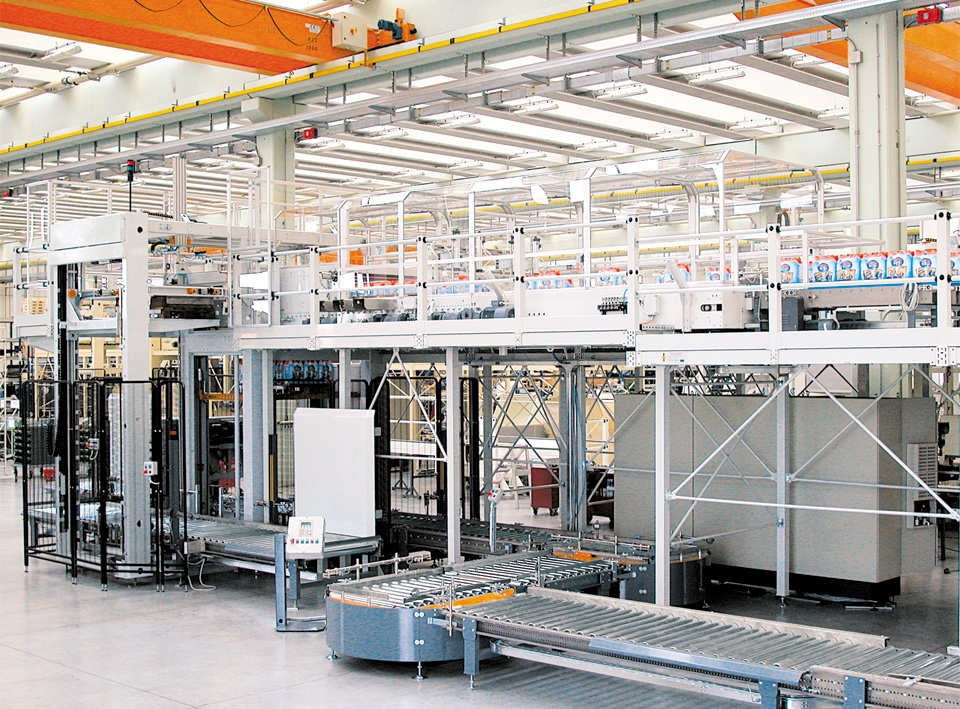

PalLinear is a high-speed high-level inline palletizer and one of the most efﬁcient, reliable and durable machines on the market today. It can reach very high speeds while at the same time guaranteeing gentle product handling. Among its multiple advantages, it offers very high outputs, reliability in terms of duration and sturdiness, high structural rigidity, low noise levels, user-friendly format changeovers, and simple direct access for inspection, cleaning and maintenance.

Working at up to 660 layers per hour, PalLinear has a line working capability of 10 layers/min. It is fitted with operator and control safety devices guaranteeing the proper functioning of the machine at all times.

CONTACT

Download

PalLinear │ Brochure

Features

Design specifications

Design specifications

Main structure made of molded sheet-steel proﬁles with four up-rights to give the system rigidity and user-friendly accessibility and cleaning.

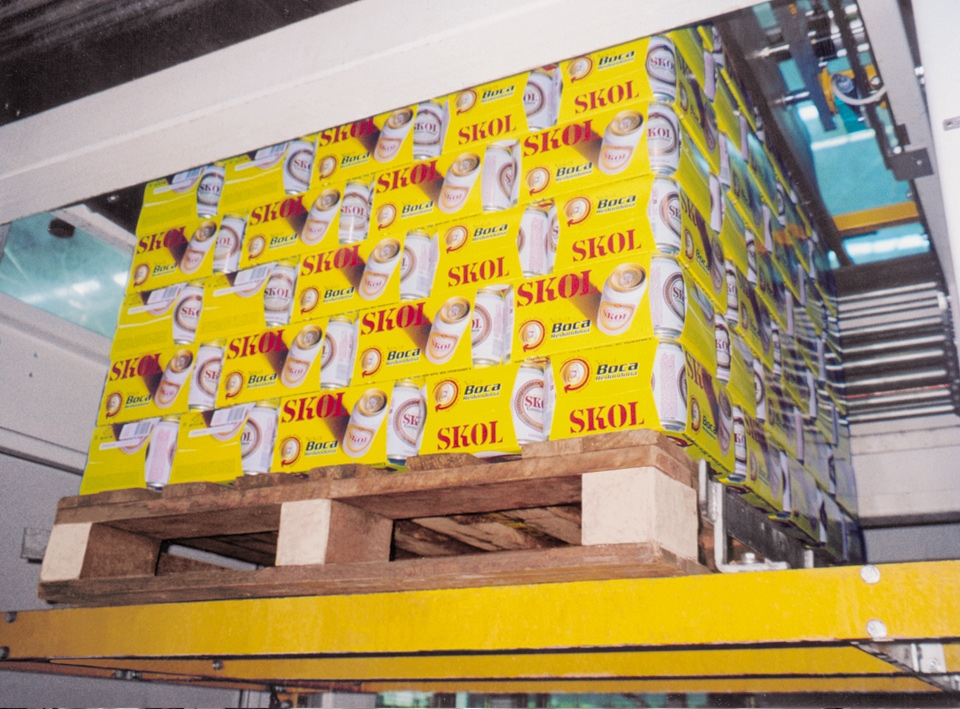

Frame-type pallet lifter with four closed-circuit chains, driven by two mechanically coupled geared motors with oil bath.

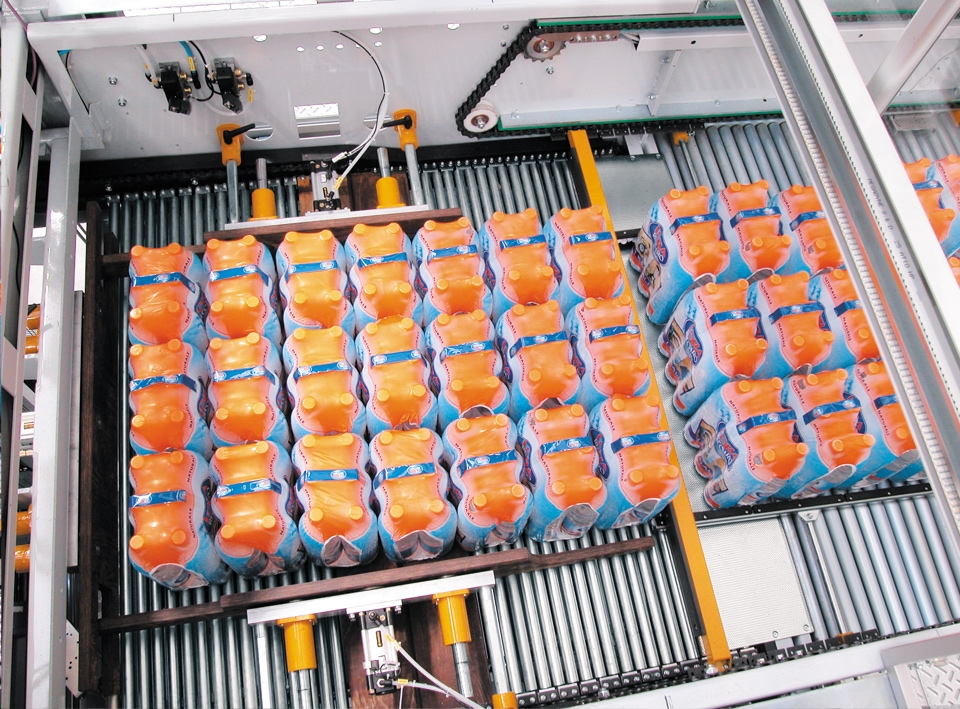

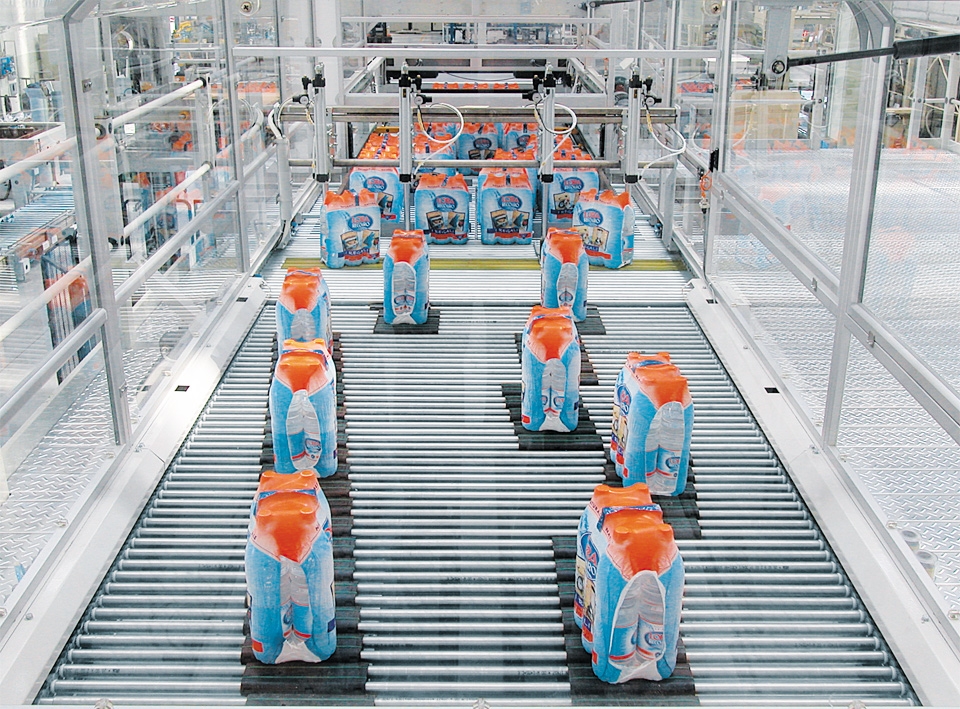

Discharge cart with idle rollers divides in two to create any kind of pattern both length- and crossways in space.

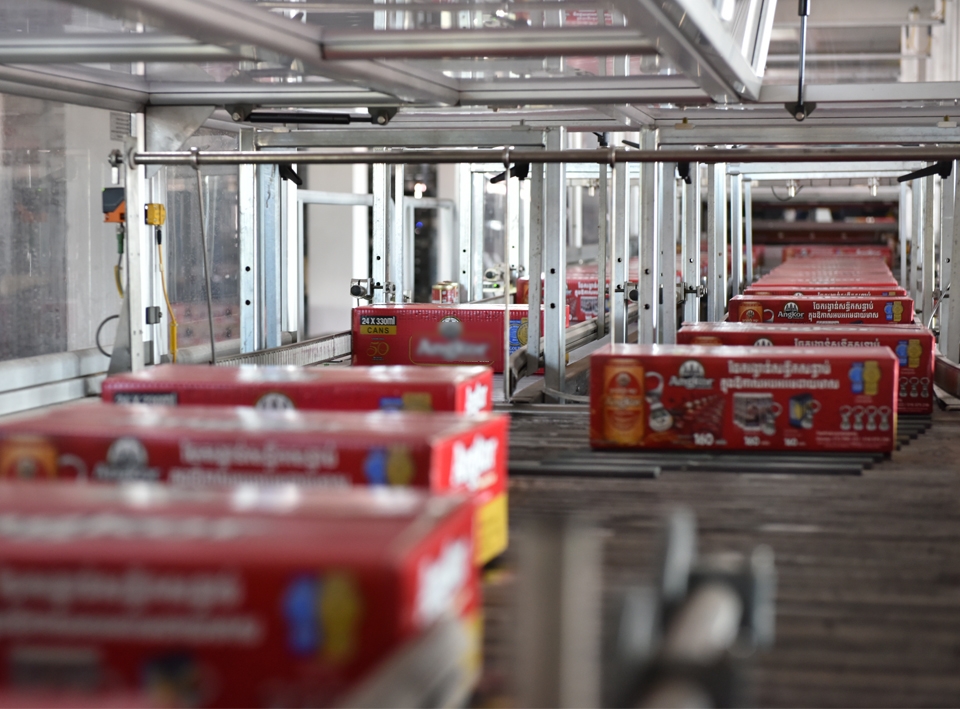

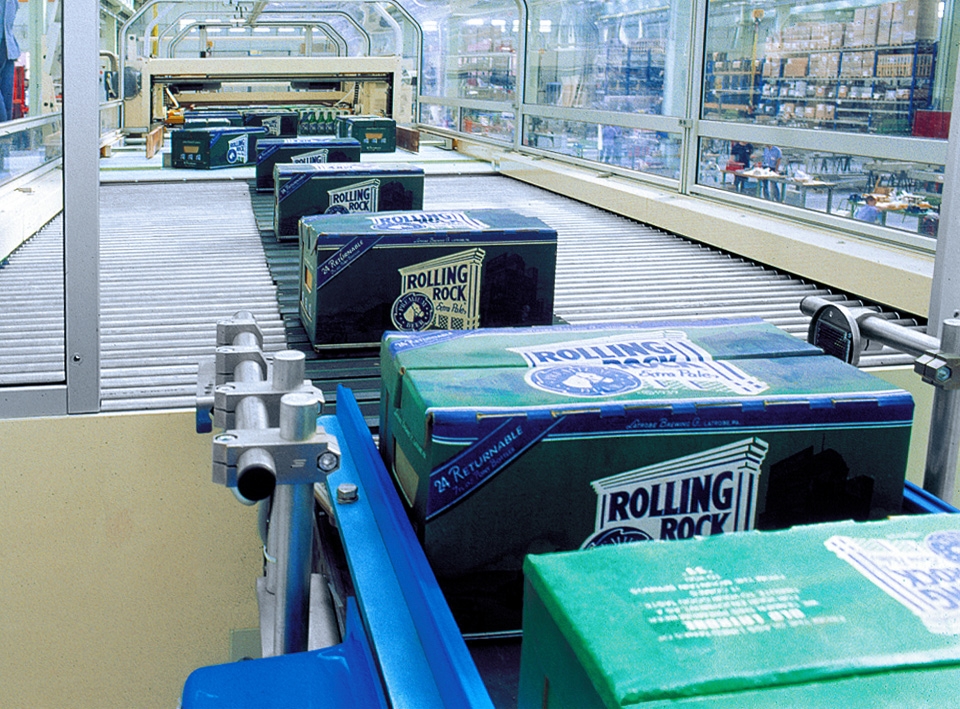

Conveyor for transferring packs, also suitable for handling unstable products, with independent drive.

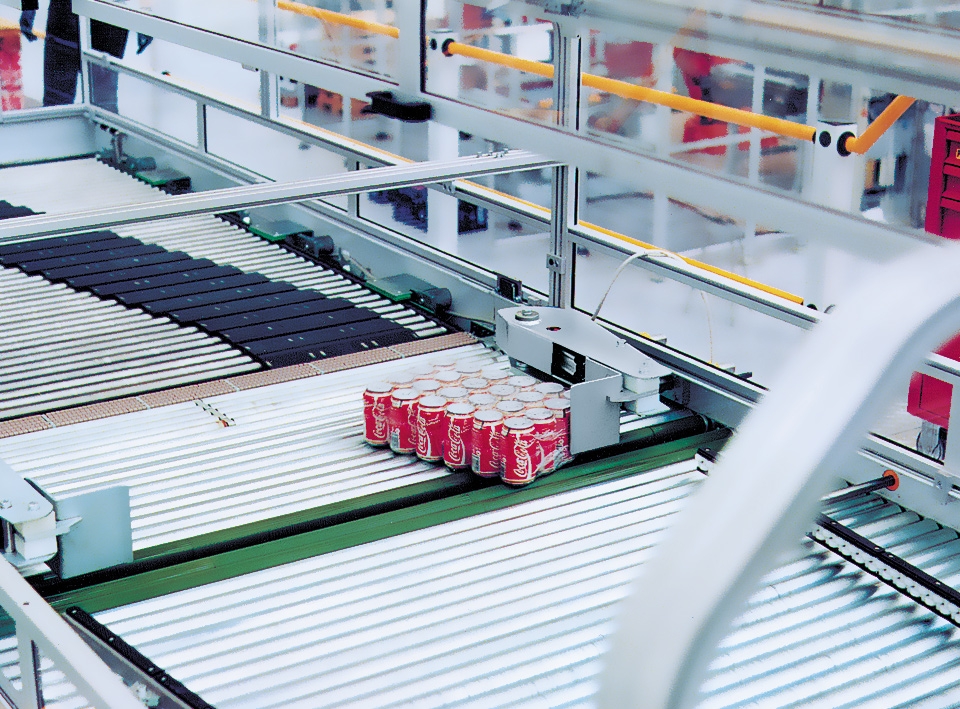

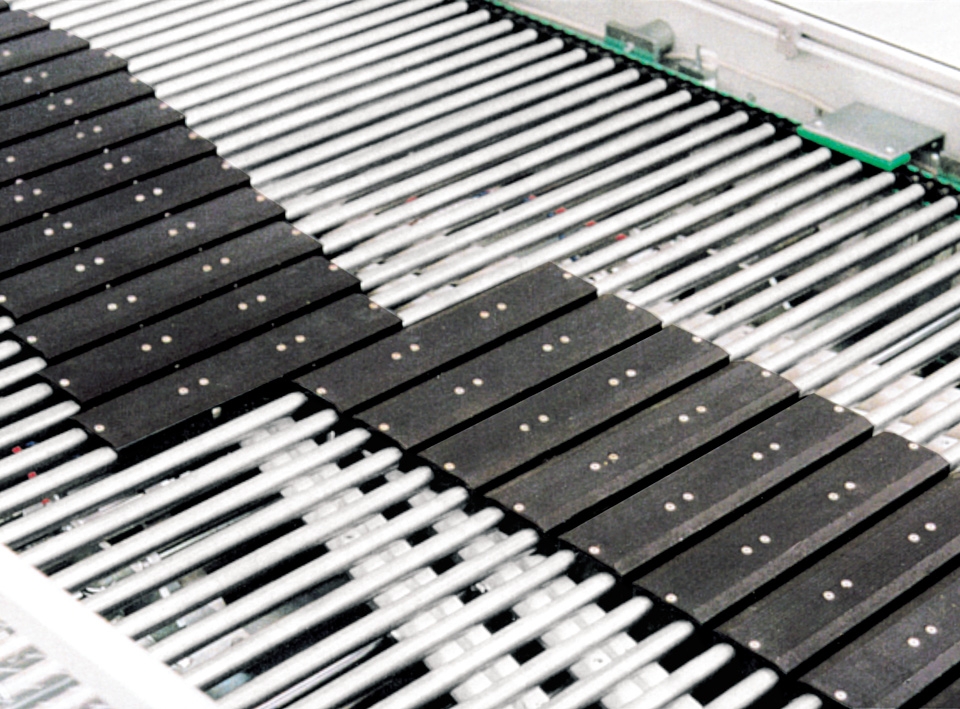

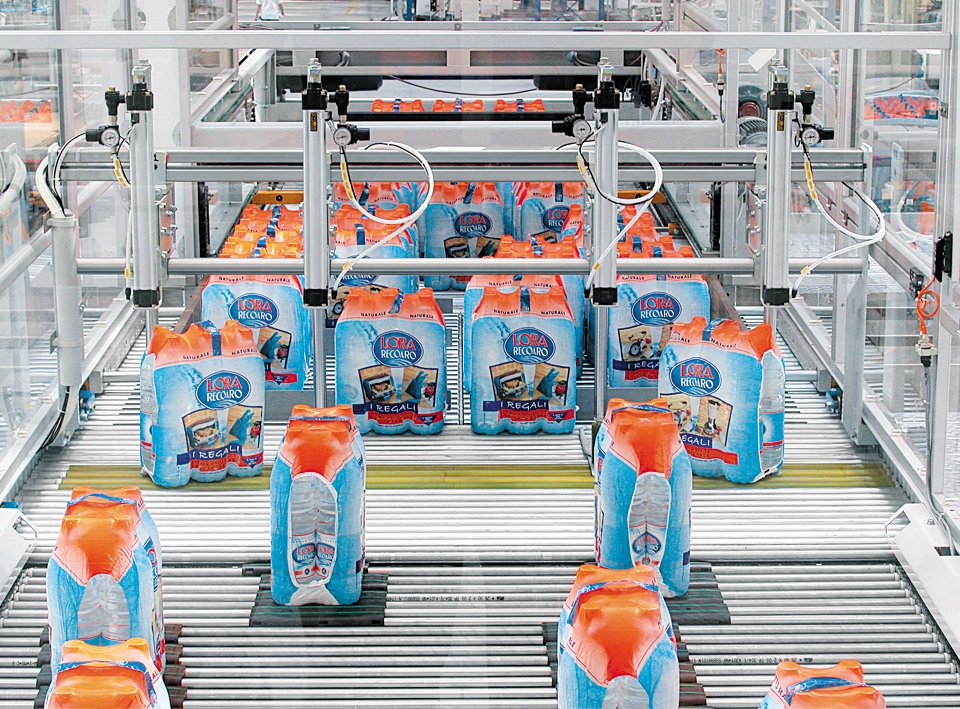

System of dividing into several rows with mobile plates.
Movement controlled by PLC to manage all the activities linked to the functioning of the machine, and to signal any malfunctions.
Control panel for operator interface providing indications in real time and allowing for manual execution of operations usually carried out by the machine.
Service platform to access work area.
Transparent coverage over the whole conveying area, enabling the operator to monitor the working stages.
