C18 Shrink-wrappers

TOP 3 BENEFITS:

  • Ideal solution for contract packing or mixed product collations
  • Ability to handle all types of products, even unstable ones
  • Continuous functioning with or without sealing bar

PRODUCT INFORMATION

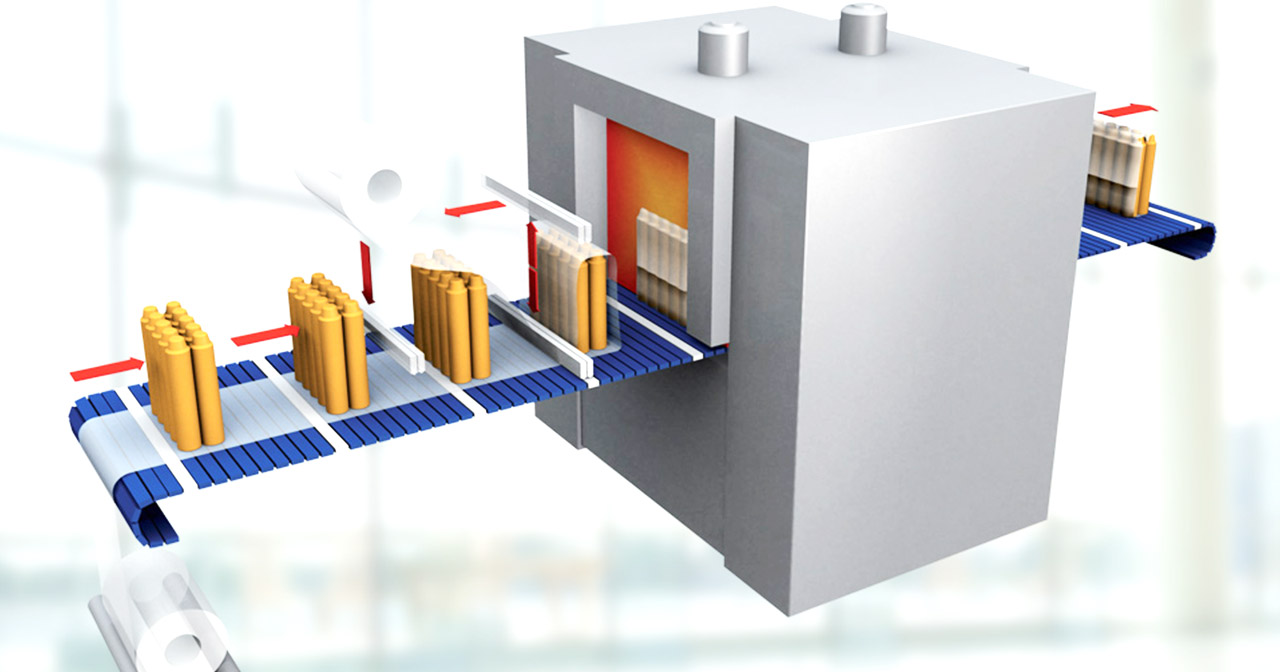

This Flexible range is the ideal solution for those who require semi-automatic shrink-wrapping machinery which combines manual loading with automatic shrink-wrapping, either with or without a traveling sealing bar.

Shrink-wrapping with sealing bar

This features a traveling sealing bar and pre-feeding of film. The bar movement guarantees continuous shrink-wrapping with no halting or jolting. Unstable and lightweight products enjoy improved stability when the sealing bar descends as it controls the film feed.

Without sealing bar

Without the sealing bar, there is no visible seal. The film is printed for direct marketing, for all types of packs thanks to the print registered film. The result is a great promotional tool, for limited series and sampling, offering improved packaging identification on the shelf as well as in the stockroom.

CONTACT

Features

Design specifications with sealing bar

  • Single metal square bar conveyor.
    • Single-product conveyor from the machine infeed through to the outfeed.
    • No transfer zones for increased product stability.
    • Less risk of products falling or the batch separating.
    • Loading from each side of the machine.
    • Various lengths of loading extension available.



  • Multi-pitch and dancing roller.
    • Product detection and automatic adjustment to the size and collation (dancing roller).
    • Sealing bar cycle adapted to the batch length (multi-pitch).



  • 90° film reel holder.
    • More flexibility in machine layout.
    • Quick, ergonomic film reel changeovers by the operator.

Design specifications without sealing bar

  • Manual product infeed extension.
    • Elevated infeed conveyor for easy product loading.
    • Adjustable batch guide for simple loading (products positioned against a stop).
    • Extension of 2000 mm for infeed of products by 1 to 4 operators.
    • Loading from both sides of the machine.



  • Increased flexibility, handling of all types of products (thanks to manual product loading) and creation of a wide variety of batches (even with different products).
  • Adjustable lapping system.



  • Film injection table.
    • Positive handling, the film is constantly held between rubber rollers.
    • Anti-static generator and bars to neutralize electrostatic charges.

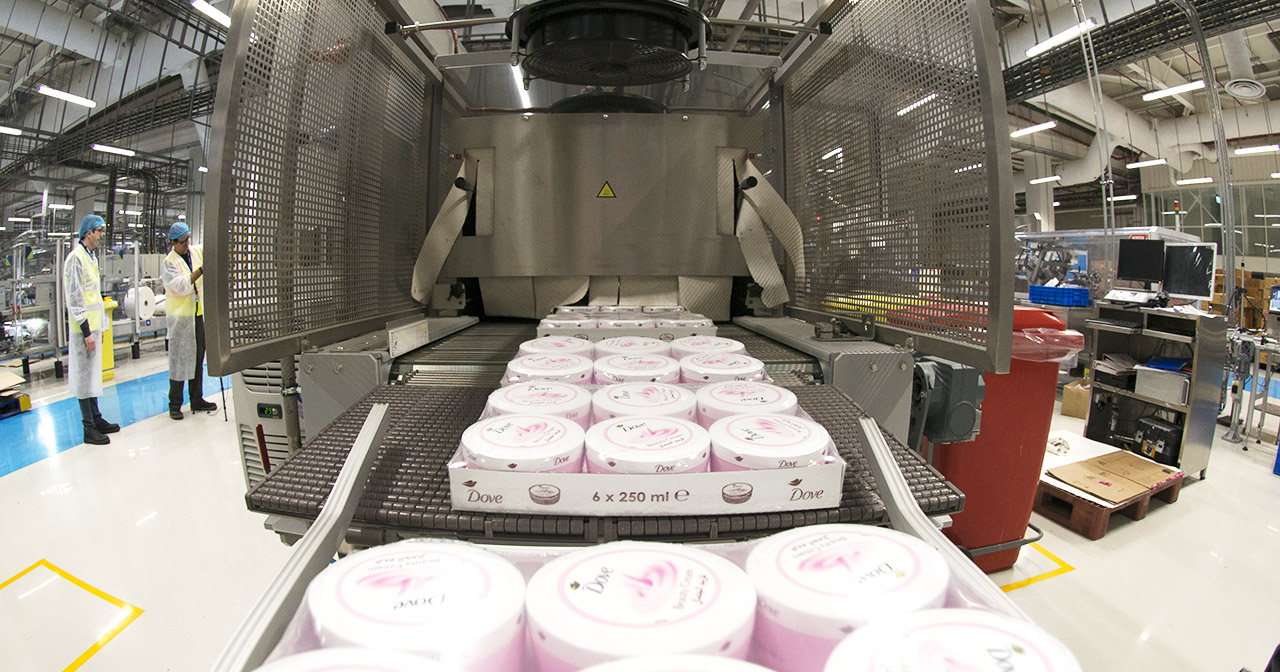

  • Shrink tunnel.
    • Effective control of the temperature by a regulator.
    • Several settings to accurately adjust the intensity, direction and height of the hot air flow.
    • Turbine at the tunnel outfeed to guarantee film cooling and stabilization.

Options

Easy-open pack

  • Film perforation system with no reduction in speed
  • Finished pack easily ripped open

Dual lanes

  • Productivity doubled at the same machine speed
  • Quick and easy implementation

Anti-static bars

  • Neutralization of electrostatic charges around the bar
  • Elimination of attraction between materials

Change to a fully automatic line

  • Versatile solution for upgrade via an easy-to-install retrofit kit
  • Numerous selecting systems available to suit the type and shape of products
