Cermex SF39 | Case packer

TOP 3 BENEFITS:

  • Case forming, loading and sealing on a single machine
  • Less cumbersome design
  • Operator zones visible and accessible

PRODUCT INFORMATION

This is the ideal solution for products that cannot be vertically picked or tilted (product which should remain standing up at all times during the packing process).

  • The product positioning is carefully controlled during collation, forming and loading of the RSC.
  • The ergonomic design of the case magazine limits the pressure applied to the case being extracted.
  • The case transfer from station to station is smooth and accurate thanks to a servo-driven trolley.
  • The products are guided during the packing phase by 4 lower movable elevating guides.

Performance

  • Ideal solution for a low product infeed
  • Case squaring guaranteed
  • Quick and easy format changeovers
  • Speed: up to 10 cycles/min
  • Operator zones visible and accessible
CONTACT

Download

SF39 | Brochure

Features

Design specifications

  • Hot-melt or adhesive tape sealing
  • Case squaring guaranteed

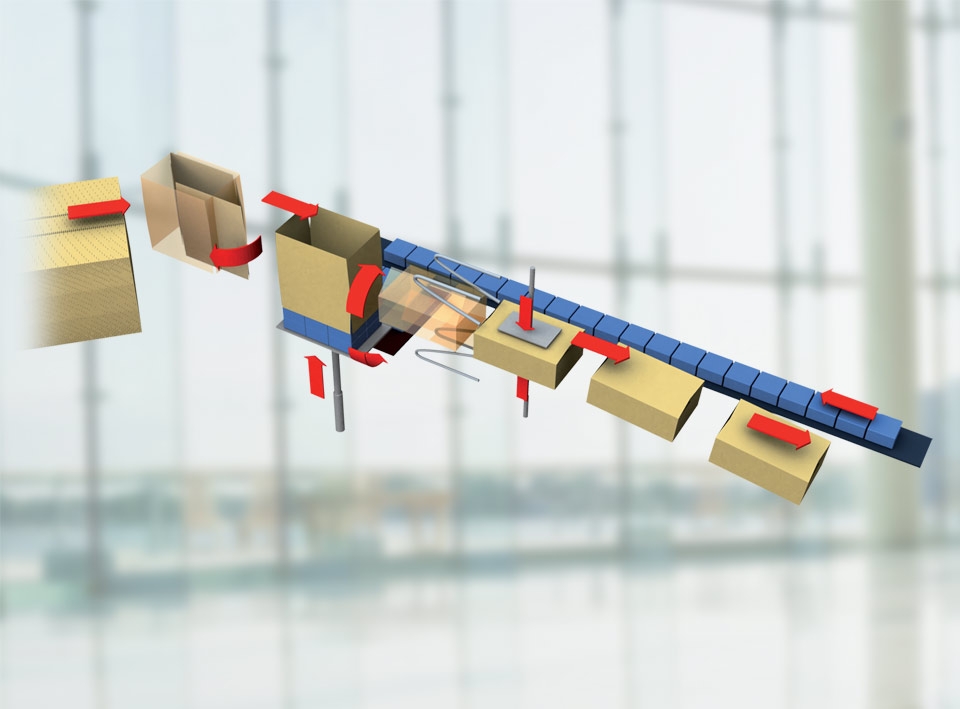

  • Stocking of cases upright in a flat chain magazine advancing mechanically with stabilizing guide.
  • Extraction and presentation of the blank vertically at the forming station by an arm with suction cups.
  • Forming and squaring of the case while static by rotating arm and lower support ramp.
  • Transfer of packaging from one station to the next, held between front and rear rotating brackets, carried out by servo-motor shuttle.

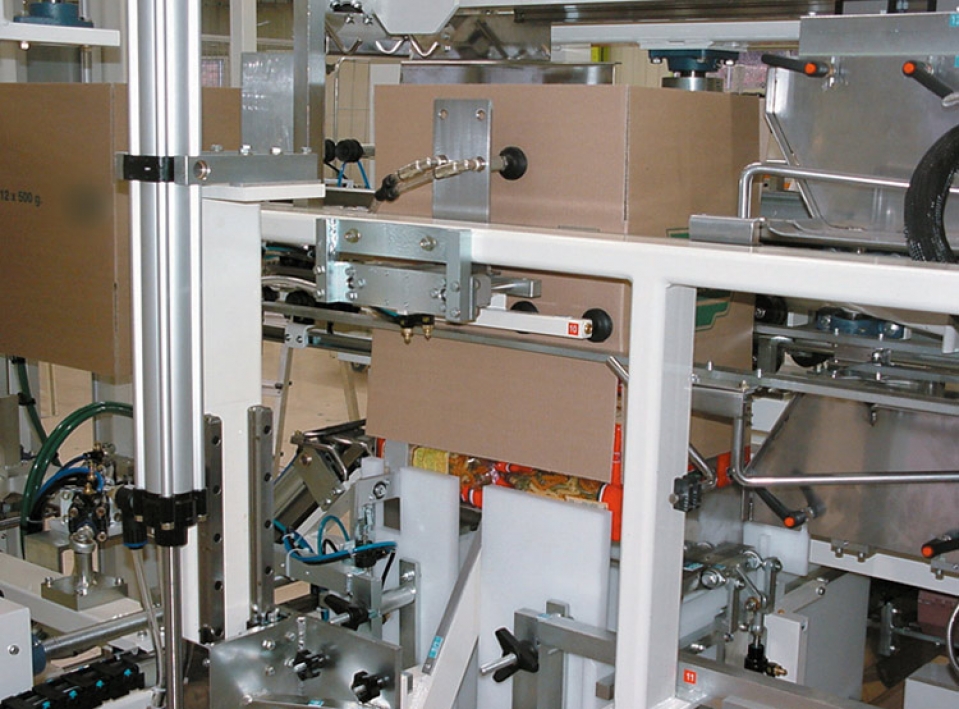

  • Products guided into the case by the action of 4 lower moving guides.
  • Case supported and flaps held vertical during this operation by the action of an upper counter plate.
  • Products held in the case during folding of the bottom flaps by the specific combination of actions associated with the folding of the lower flaps and the lateral withdrawal of the loading plate.
  • Transfer of cases onto a free roller motorized band conveyor and pneumatically-driven descent to link to the downstream conveyor.

Hot-melt glue version

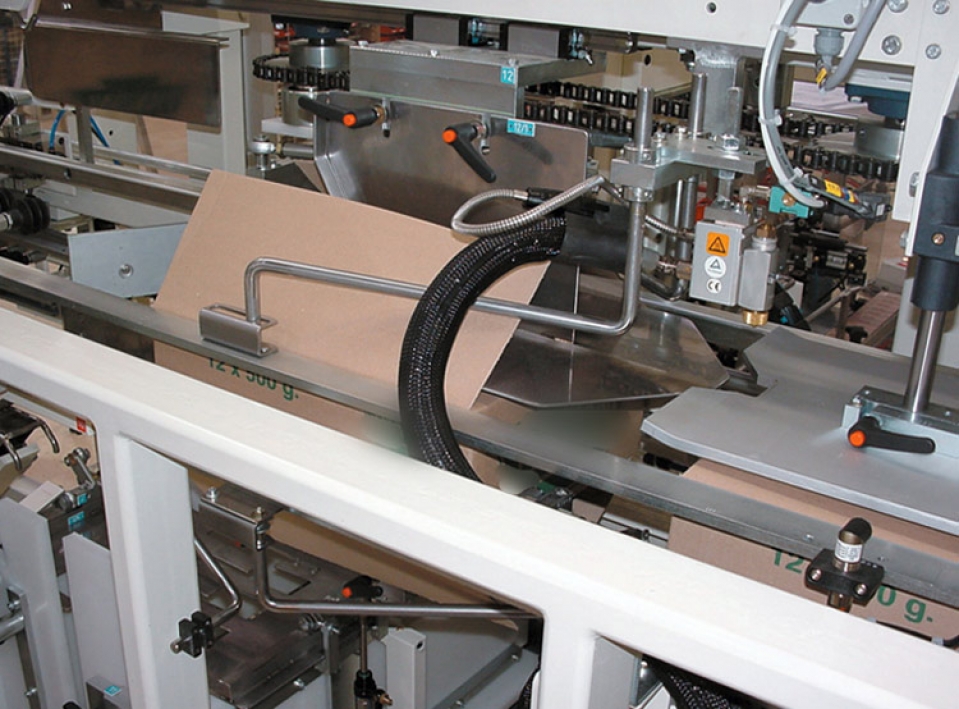

  • Flaps are progressively folded by a set of fixed and moving guides.
  • The hot-melt glue strips are applied evenly thanks to control of the speed of the shuttle.
  • When the case is static, a steady pressure is applied by two pressing plates to guarantee correct gluing and squaring prior to outfeed.

Adhesive tape version

  • Long flaps are folded completely by fixed rollers, and the case is transferred by motorized belts for sealing using adhesive tape.
