SFR regulated flow selection system

TOP 3 BENEFITS:

  • High speed, multi-format versatility and quick format changeovers
  • Easy adjustment of lanes and selecting fingers thanks to servo-drive
  • Continuous batch selection



PRODUCT INFORMATION

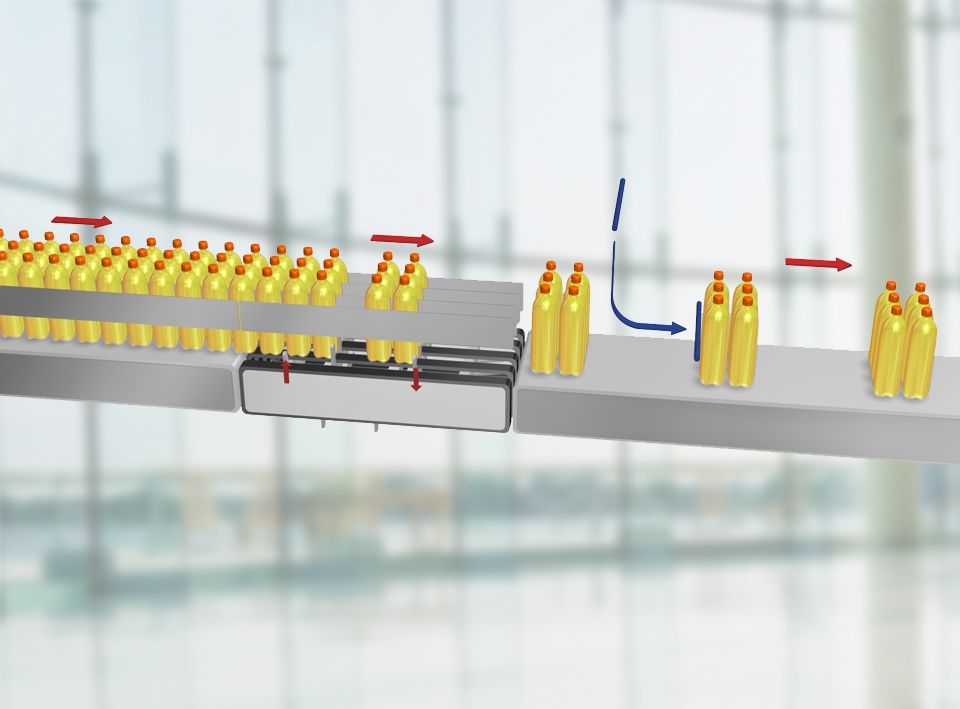

The SFR regulated flow selection system can handle a wide range of products with varying diameters: from 55 to 124 mm (2.16 to 4.88 inches) or 0.25 L to 3 L (0.06 to 0.79 US gallons). Products are collated by speed variation between the selecting module and the downstream conveyor. The SFR is fully adjustable and requires no change parts.

Versatility characterizes the SFR. It allows quick, easy and constant format changeovers (formats managed via machine control panel), and its flexibility facilitates the addition of future formats throughout the machine’s life cycle. As an option, the lane can be automatically adjusted by adding motors.





CONTACT

Features

Design specifications

  • Servo-driven adjustments to product length and width (no change parts).
  • Infeed of products in lanes on a motorized conveyor.
  • Infeed of products in accumulation already distributed into lanes.
  • Continuous product selection by two sets of servo-driven fingers rising between the lower timing belts to retain and release product batches.
  • Flight bar system for collation and distribution into 1, 2 or 3 lanes.

Performance

  • Speed: 10-100 cycles/min.
  • Continuous batch selection.
  • A single cassette required to handle all the formats.
  • Servo-driven (format changeover in less than a minute).

Technical specifications

  • The pins regulate the product propulsion and guarantee their alignment.
  • Optimization of product stability.
  • Accurate adjustment thanks to the servo-driven control system.
  • Belt with nose bar (at selecting system outfeed) for an almost uninterrupted link between 2 conveyors.
  • Use of timing belts.
