Deca RoboKombi

Bottle and crate changes

In the event of different bottle/crate sizes, a different set of gripping heads can be housed on a dedicated magazine (available as an option). The robotic head moves on top of the dedicated magazine releasing the current set of gripping heads and bottle guides, picking up the new ones. The Deca Robo-Kombi offers semi-automatic changeover on crate conveyors.

Technical specifications

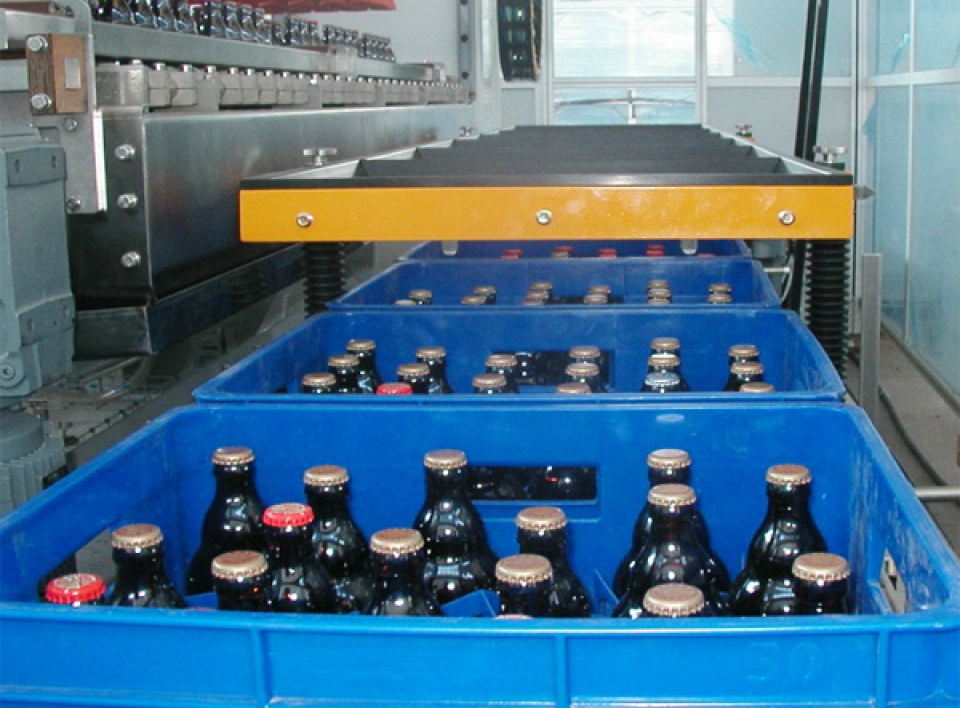

Crate conveyors and centering device.

• Crate conveyors can be single or double lane.
• A mobile centering device aligns the crates so that they are in a correct position, thus allowing an accurate bottles insertion.

Bottle outfeed

• Bottle discharging table with self-supporting structure in AISI 304 and stainless steel chains with 85 mm pitch.
• The system includes:
• Photocell that detects the maximum bottle accumulation
• Photocell that detects unreleased bottles
• Side guides for smooth bottle discharging

Bottle removal system

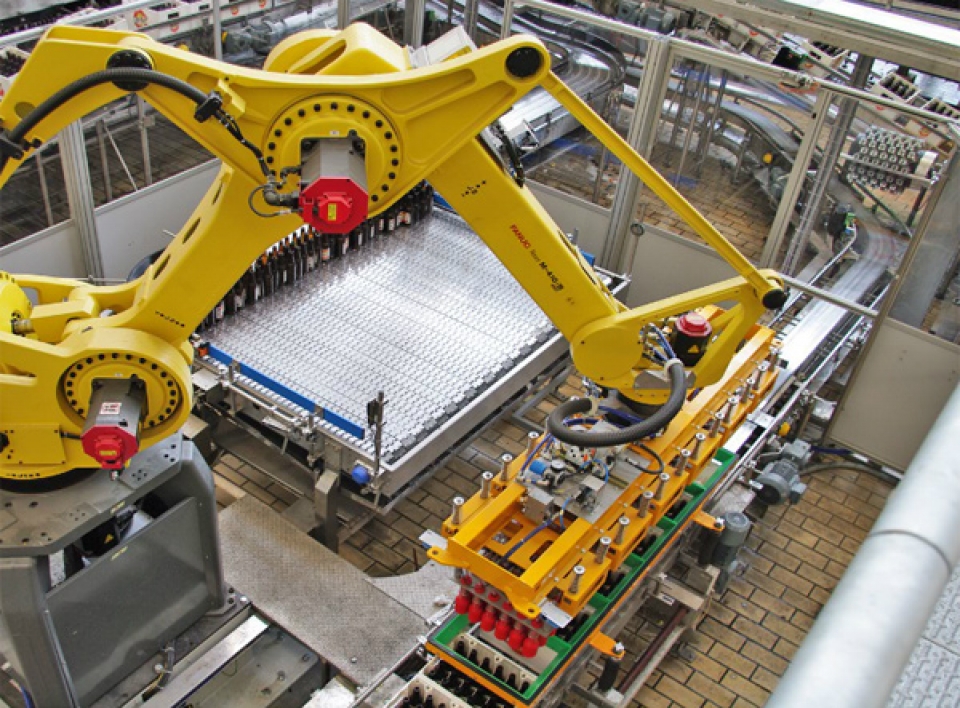

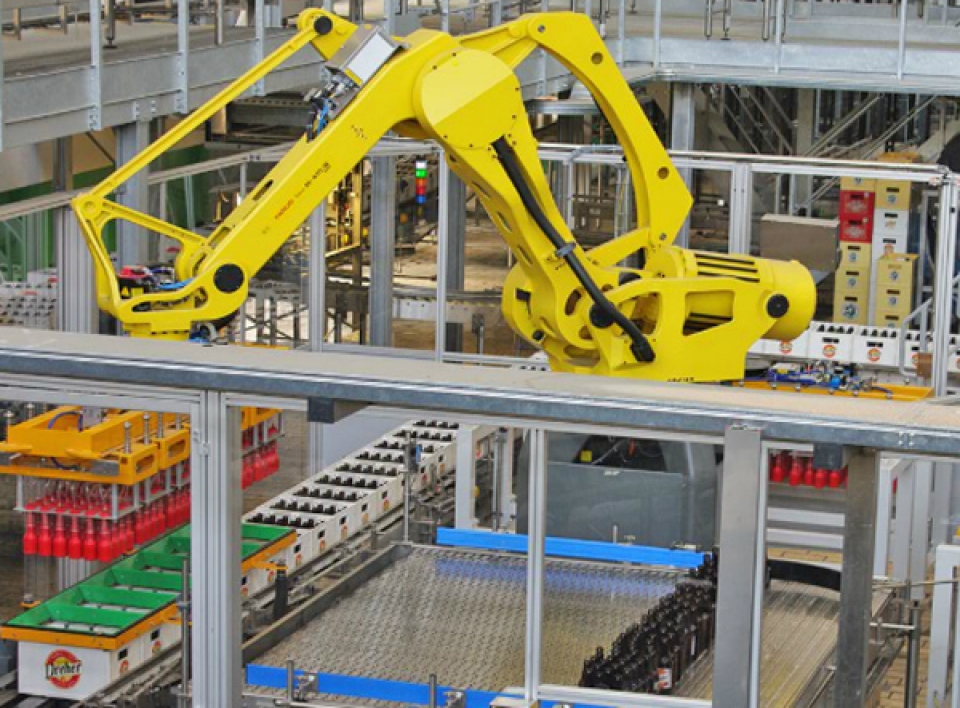

• A four-axis anthropomorphic robot having a payload of 450/700 Kg at wrist.

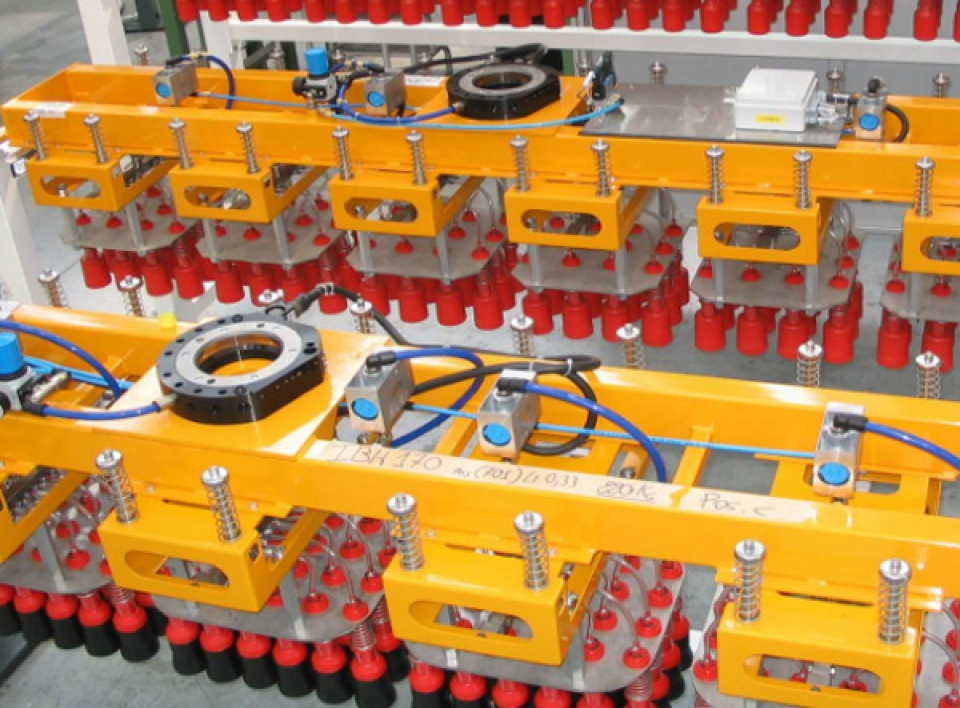

Gripping heads

• Bottle handling system by means of individual, pneumatically operated grippers, grouped on gripping heads adapted for different sizes of crates to be handled.
• The number of gripping heads depends on the output required.
• The gripping heads, which may be fixed or mobile, are anchored on a stainless-steel frame.

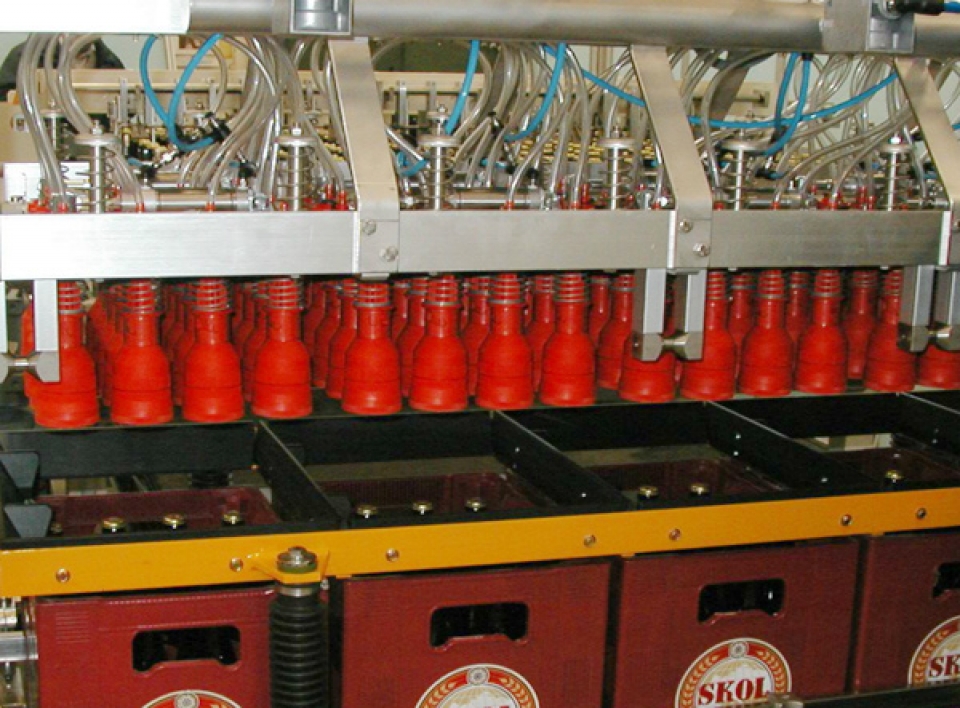

Pneumatic grippers

• Pneumatic grippers hold the bottles by the neck.
• The bottle neck's picking system can be either by membrane or plastic sectors, and tailor-made solutions are available for different bottle neck shapes.
