Gebo Aidlin 12

TOP 3 BENEFITS:

  • Gentle waterfall cap feeding with air rejection system
  • Up to 25,000 caps/hour
  • Reliable & flexible



PRODUCT INFORMATION

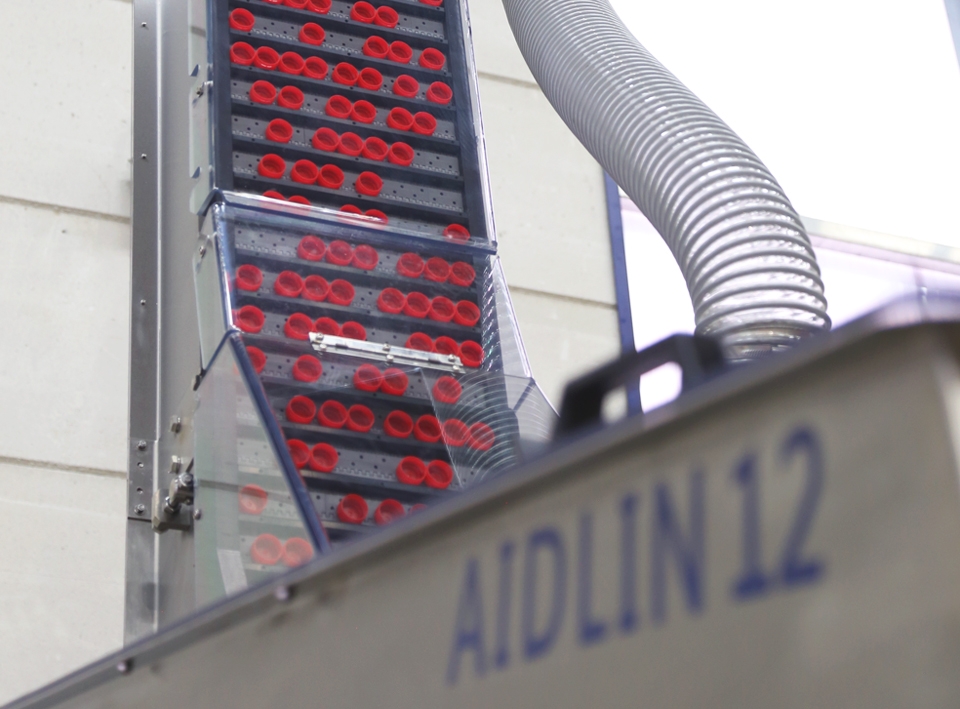

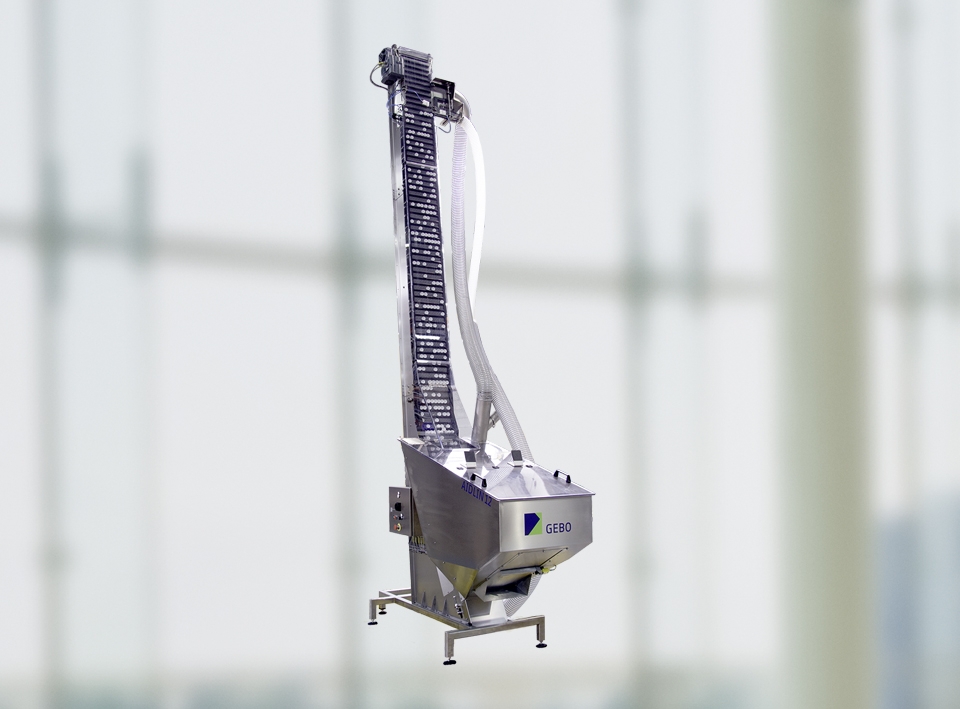

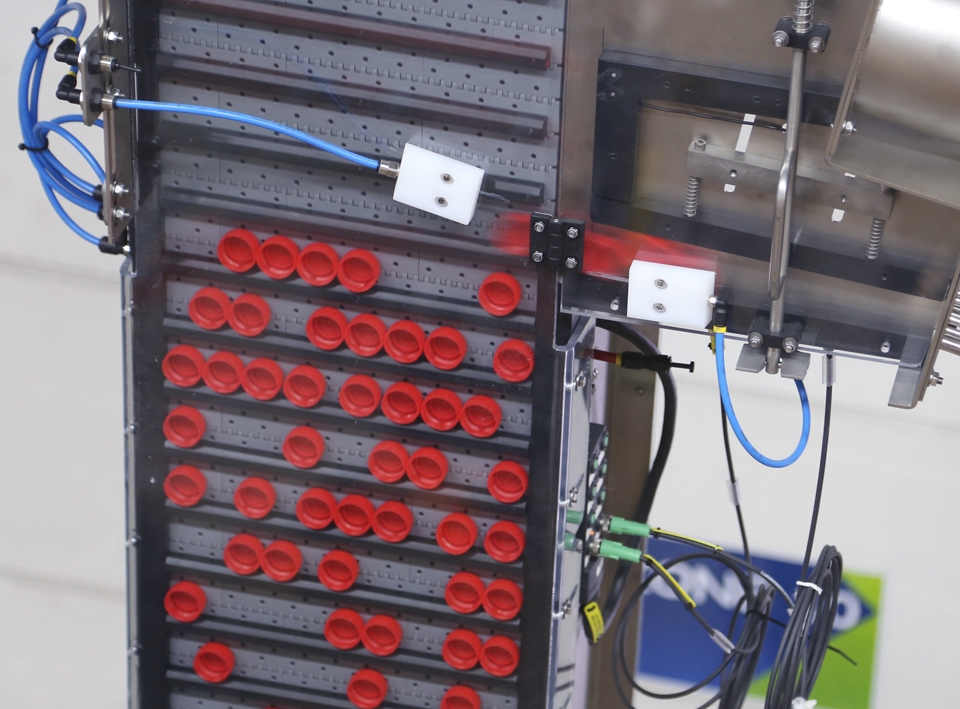

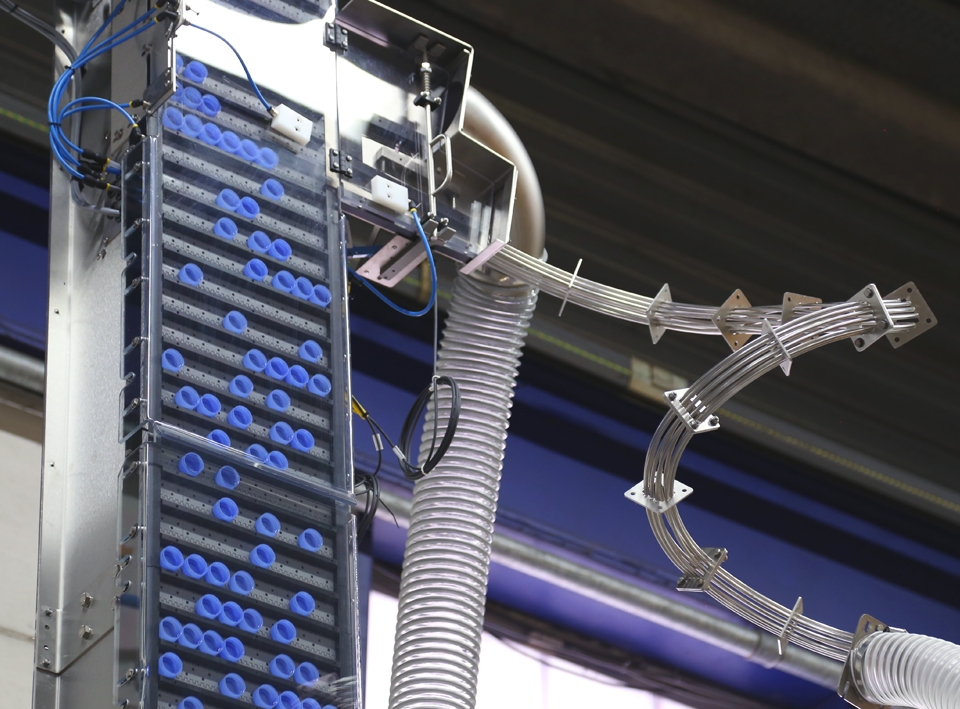

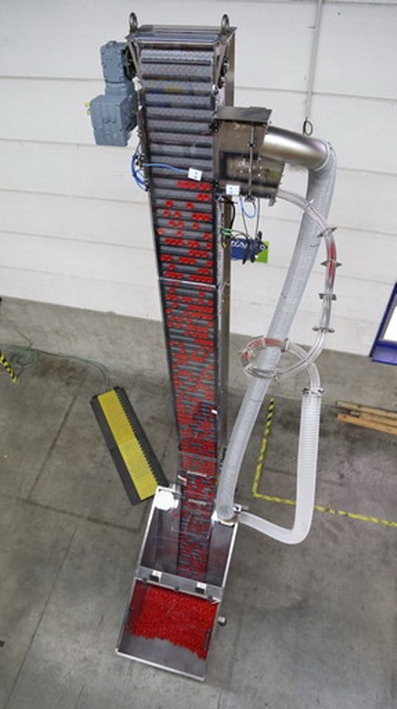

The Aidlin 12 low-speed cap feeder combines 3 functions in one: cap storage, cap sorting, and cap elevation.





CONTACT

Features

Technical specifications

  • Cap dimensions: max diameter: 60 mm; Max Height: 35 mm
  • Autonomous-control electrical cabinet on Siemens standard
  • Short neck and lightweight cap capability

Options

  • Cap discharge height: 2800 / 3900 / 4600 (overall height 3420 / 4515 / 5210)
  • Upside-down cap ejector (included in base configuration with box, recirculation in option)
  • Ringless cap ejector (included in base configuration with box, flexible pipe to the floor in option)
  • Compressed air absolute filtration for clean cap ejection
  • Extended frame (floor clearance of 300mm) for easy cleaning under the machine
  • Cap air rinser system
  • Octabin automatic dumper to fill caps into hopper
  • Ionizing bar to remove static electricity between caps inside hopper
