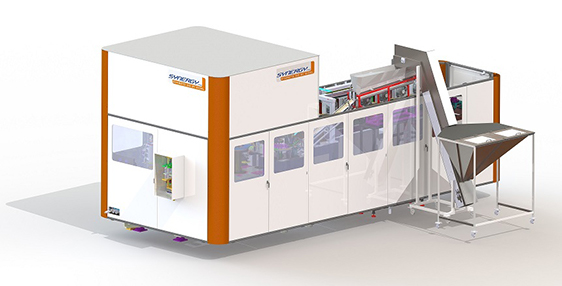

![Synergy 2/4 Eco](NewImages/2_8_rotary.jpg)
Features
Specs
Perf. OEE
Energy
Video
MACHINE FEATURES |
||||||||||
---|---|---|---|---|---|---|---|---|---|---|
Max Mechanical Output (bph) | 13500 | |||||||||
Machine Dimensions L x W x H (mtr) | 3.8x3.3x1.8 | |||||||||
Dimensions with Performa Feeder L x W x H (mtr) | 6.6x3.9x3.0 | |||||||||
Number of Heating Modules | 5 | |||||||||
Number of Heaters per Module | 10 x 2 kw | |||||||||
PC Industrial Processor | IPC | |||||||||
PC Screen | Touch Screen |
BOTTLE SPECIFICATIONS |
||||||||||
---|---|---|---|---|---|---|---|---|---|---|
Max. Bottle Diameter (mm) | 106 | |||||||||
Max. Bottle Volume (Liters) | 2.25 | |||||||||
Max. Bottle Height (mm) | 340 | |||||||||
Max. Perform neck Dimension (mm) | Upto 38 | |||||||||
Max. Perform Height incl. neck (mm) | 140 |
PERFORMANCE OEE |
||||||||||
---|---|---|---|---|---|---|---|---|---|---|
Mechanical Efficiency (mm) | 95% | |||||||||
Mold Changeover Time (in minutes for 2 technicians) | 18 |
ENERGY |
||||
AIR | Output (Lit. x bph) |
Low Pressure Air for System @ 8 bar (cfm) | Low Pressure Air @ 8 bar with Air Recovery (cfm) | High Pressure Air for Blowing @ 32 bar (cfm) |
0.5 x 13500 1.0 x 13500 2.0 x 7500 |
274 448 750 |
|||
INSTALLED ELECTRICAL POWER 415V AC 50Hz ± 5% |
135 kW (Estimated consumption) 25-35% |
|||
WATER (For Over Shields + Mold Cooling @8-12°C & 4 bar pressure) | 100 Lpm |
