MACHINE FEATURES |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Max Mechanical Output (bph) | 3300 | |||||||||
| Machine Dimensions L x W x H (mtr) | 2.31x1.77x1.77 | |||||||||

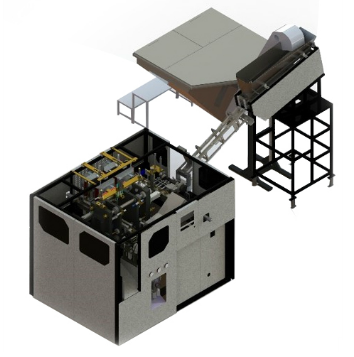

| Dimensions with Performa Feeder L x W x H (mtr) | 5.3x3.37x2.7 | |||||||||
| Number of Heating Modules | 2 | |||||||||
| Number of Heaters per Module | 8 | |||||||||
| PC Industrial Processor | Omron | |||||||||
| PC Screen | 10" Touch Screen | |||||||||
BOTTLE SPECIFICATIONS |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Max. Bottle Diameter (mm) | 85 | |||||||||
| Max. Bottle Volume (Liters) | 1 | |||||||||
| Max. Bottle Height (mm) | 275 | |||||||||
| Max. Perform neck Dimension (mm) | 32 | |||||||||
| Max. Perform Height incl. neck (mm) | 125 | |||||||||
PERFORMANCE OEE |
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Mechanical Efficiency (mm) | 95% | |||||||||
| Mold Changeover Time (in minutes for 2 technicians) | 30 | |||||||||
ENERGY |
||||
| AIR | Output (Lit. x bph) |
Low Pressure Air for System @ 8 bar (cfm) | Low Pressure Air @ 8 bar with Air Recovery (cfm) | High Pressure Air for Blowing @ 40 bar (cfm) |
| 0.25 x 3000 0.50 x 3000 1.0 x 3000 |
62 62 62 |
45 30 17 |
49 71 110 |
|
|
INSTALLED ELECTRICAL POWER 415V AC 50Hz ± 5% |
29 kW (Estimated consumption) 55-60% |
|||
| WATER (For Over Shields + Mold Cooling @8-12°C & 4 bar pressure) | 30 Lpm | |||
